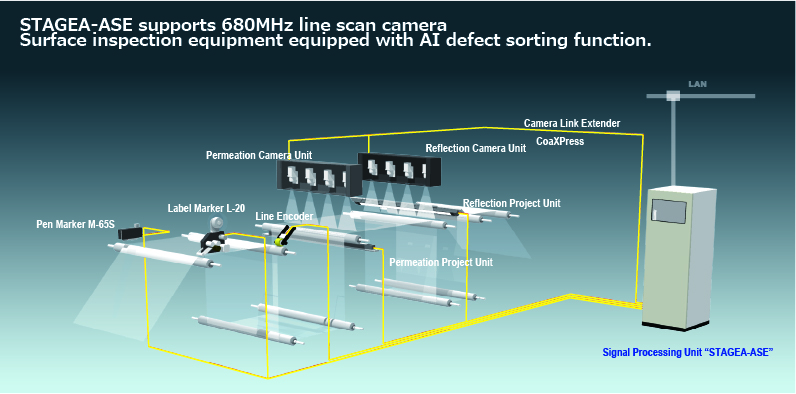

Surface inspection system | STAGEA-ASE
Supported cameras
CameraLink 160MHz to 680MHz camera, CoaXPress (160MHz to 680MHz equivalent)
| 2K 2048bit | 4K 4096bit | 6K 6144bit | 8K 8192bit | 16K 16384bit | Cable length | |
| CameraLink 160・170MHz | ○ | ○ | ○ | ○ | ～100m | |
| CameraLink 320・340MHz | ○ | ○ | ○ | ○ | ～100m | |
| CameraLink 640・680MHz | ○ | ○ | ○ | ～100m | ||
| CoaXPress | ○ | ○ | ○ | ○ | ～35m |
※ For cable lengths other than the above, please contact us.
AI defect sorting function
Defects can be classified by AI, and defects can be reclassified on the inspection result screen.
Image registration screen
Classification degree display
Inspection screen
The inspection status is updated in real time, and the image, information, and position of defects can be checked on a single screen.
Inspection results
You can check the inspected lot on the defect map and image list display, and edit the defect information.

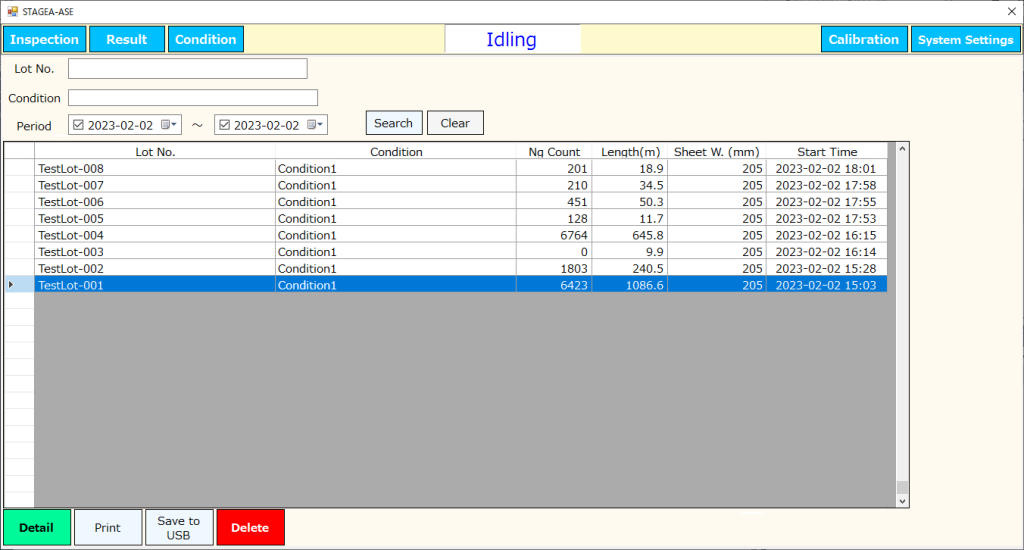

Inspection result list
Defect map display
Defect image list display
Defect information editing function
Inspection condition registration
Register inspection conditions for each product.
Up to 30 items can be registered.
Calibration
Using a sample, check the detection level, frame image, and waveform.
Adjust the detection level from the image scanned one frame.
Captures and displays frame images continuously.
You can check if there is any overdetection in the binarized frame image.
You can check the camera signal waveform.
